NB-2032 Auto Nucleic Acid Purification System

Product Introduction NB-2032 Auto Nucleic Acid Purification System Working principle Use the magnetic rod on the magnetic rod holder in the machine to move the magnetic beads with adsorbed nucleic acids to different reagent tanks, and then

Send Inquiry →
NB-2032 Auto Nucleic Acid Purification System
    Product Introduction

    NB-2032 Auto Nucleic Acid Purification System

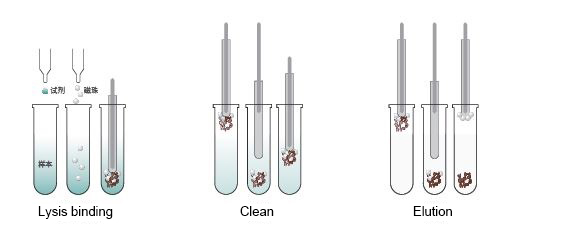

    Working principle Use the magnetic rod on the magnetic rod holder in the machine to move
    the magnetic beads with adsorbed nucleic acids to different reagent tanks, and then use
    the magnetic rod sleeve placed on the outer layer of the magnetic rod to repeatedly move
    the liquid up and down to mix it evenly. Lysis, nucleic acid adsorption, washing and
    elution, to obtain the purest nucleic acid.

    NB-2032 is a fully automatic nucleic acid extraction instrument launched by NANBEI based
    on the needs of clinical large-scale genetic analysis.

    This machine uses magnetic bead separation technology, according to the selection of the
    appropriate kit to separate and purify nucleic acids in multi-source samples (such as
    blood, animal and plant tissues, cells).

    The entire instrument has stable performance and low noise, and the operation is automated,
    fast and simple.

    It can simultaneously purify 32 samples. A powerful "assistant" in clinical genetic testing
    and molecular biology laboratory research



    Characteristics

    lFast and efficient

    ●Purified nucleic acid purity can meet the needs of various downstream experiments

    ● Nucleic acid recovery rate> 95%, magnetic bead recovery rate> 95%

    ●Total extraction of 32 samples can be completed in about 20-40min (depending on reagents)

    Safe and reliable

    ●Fully automatic operation with disposable consumables to reduce personnel contact

    ●Built-in regular UV disinfection, efficient cleaning

    ●Exhaust fan to effectively avoid aerosol pollution

    ●Prevent door opening alarm and automatically stop the movement structure during operation to ensure safe operation

    Strong versatility

    ●Multi-speed and multi-module for selection, and can store 100 programs to meet different customer requirements

    ●Custom lysis and elution temperature

    ●Suitable for different samples, such as animal and plant tissues, serum, plasma, etc.

    Flexible control

    ●Large screen full color display, touch operation, easy to use

    ● Customizable shortcut program, one-click startup

    ●Humanized observation window and display screen design, easy to operate



    Parameters

    Model NB-2032
    Sample throughput 1-32
    Processing volume 30-1000ul
    Magnetic bead recovery rate > 95%
    Number of magnets 32
    Purification sensitivity Positive detection rate of 100
    copies sample    		 > 95%
    Purify the difference between pores  CV <3%
    Consumables 96 deep well plate + magnetic rod sleeve
    Cracking temperature Room temperature to 120 ° C
    Elution temperature Room temperature to 120 ° C
    Concussion mixing
    Operation interface 7-inch touch screen, 8 shortcut program files
    Internal program Preset 8 programs, can store 100 programs

    Remark: This product is for civilian use only
