Double Disinfection Multi-function Ozone UV Air Disinfector Ozone Disinfector
Introduction to Ozone
Ozone is a strong oxidizing gas at normal temperature, and its density is 1.68 (air is 1). Ozone is less soluble in water (3%).
Ozone has extremely poor stability and can decompose into oxygen by itself at normal temperature. Therefore, ozone cannot be
stored in bottles, but can only be produced on site and used immediately.
Scope of application
Ozone is a broad-spectrum fungicide that can kill bacterial propagules and spores, viruses, fungi, etc., and can destroy botulinum toxins.
In hospital disinfection, the main uses of ozone are as follows.
(1) Water disinfection: disinfection of hospital sewage and medical treatment water.
(2) Disinfection of the surface of the articles: Eating utensils, barber tools, food processing appliances, clothing, etc. should be disinfected in a closed box.
(3) Air disinfection: It is used for disinfecting indoor air without people.
Ozone sterilization principle
"Ozone (O3) disinfection principle is: the molecular structure of ozone is not stable at normal temperature and pressure, and it will quickly decompose into oxygen (O2)
and single oxygen atom (O); the latter has a strong activity and is effective against bacteria. Extremely strong oxidizing effect, killing it, and the extra oxygen atoms
will recombine into ordinary oxygen atoms (O2) on their own. There is no toxic residue, so it is called non-polluting disinfectant. Hepatitis virus, E.coli, Pseudomonas
aeruginosa and miscellaneous bacteria, etc.) have a very strong killing ability, and it is also very effective in killing mycin. "
1. Ozone sterilization and process are biochemical processes, which oxidize and decompose the glucose oxidase necessary for oxidizing glucose inside bacteria.
2. It directly interacts with bacteria and viruses, destroys its organelles and ribonucleic acids, and breaks down macromolecular polymers such as DNA, RNA, proteins, lipids,
and polysaccharides, and destroys the bacterial material metabolism and production process.
3. Penetrating the cell membrane tissue, invading the cell membrane and acting on the outer membrane lipoprotein and the internal lipopolysaccharide, causing the cell to undergo
permeation distortion, resulting in cell lysis and death. In addition, the genetic genes, parasitic bacteria species, parasitic virus particles, phages, mycoplasma, and pyrogens
(bacterial virus metabolites, endotoxins) in the dead bacteria are dissolved and denatured.
Looking at the principle of the effect of aseptic technology on microorganisms, it can be divided into three types: bacteriostatic, bactericidal and lysolytic. The use of ozone as
a sterilant is a lysobacteria. The so-called bacteriolysis can achieve the effect of "completely and permanently destroying all microorganisms on the surface of objects".
Unique advantages of ozone disinfection:
Strong sterilizing ability: Ozone sterilizing ability is equivalent to that of peracetic acid and higher than other disinfectants.
Broad spectrum: suitable for a variety of pathogenic microorganisms, it has a good killing effect on a variety of microorganisms
such as Escherichia coli, Salmonella, Staphylococcus aureus, Hepatitis A and B viruses, and fungi.
High diffusivity: Ozone is a gas, with good diffusivity, no dead angle, and uniform concentration distribution.
Raw materials are readily available: Ozone preparation is made using the atmosphere around us, without the need for storage facilities.
Environmental protection: Ozone can be quickly decomposed into oxygen and monoatomic oxygen, and monoatomic oxygen can be combined into oxygen molecules by itself, so there is
no problem of secondary pollution. Recognized as a green disinfectant.
Full coverage: The ozone generated by the ozone generator or electrostatic air purifier can penetrate into every corner of the environment. It can overcome the problem of ultraviolet
sterilization,which can only go straight, and there is a problem of disinfection.
Convenience: The principle of ozone generation is simple, it can work when plugged in, and it can be ionized to generate ozone by using air. No other raw materials are needed. The device has a
microcomputer switch, which can be automatically opened and closed, and can be left unattended. And the equipment can be large or small, can be adapted to a single room, can also be adapted to
large public spaces, can also be simply placed on public transportation such as buses, high-speed rail, ships, aircraft.
Cheap: Ozone generator is cheap, no raw materials and labor are needed, the power of the ozone generator used in general office is only about 300w, and it is turned on three or four times a day,
after 1-2 hours after work, it is completely eliminated, and it is turned on 2-3 times during the day. 10-20 minutes each time.

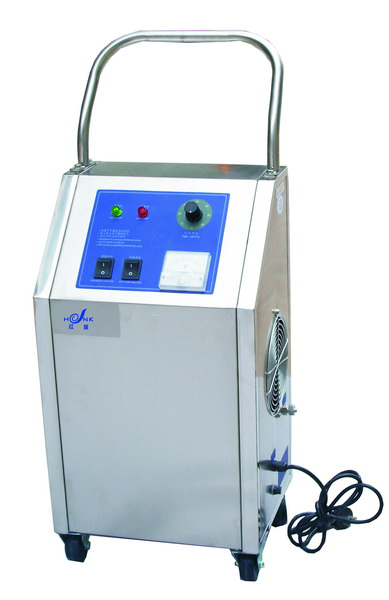

Mobile ozone disinfection machine
◆ Product use: Sterilization and mosquito repellent, mosquito and fly repellent in workshops, warehouses, changing rooms of production companies such as food factories, pharmaceutical factories,
wineries, cosmetics factories, edible fungus inoculation rooms, ward, injection room, waiting room, theater, conference Room, guest room, restaurant, KTV room and other places; disinfection and
disinfection of space in slaughterhouses, farms, etc.
◆ Working principle: Use natural air as raw material, adopt high-frequency high-pressure quartz tube discharge technology to make ozone. The built-in air compressor outputs ozone.
◆ How to use the space: Place the disinfection machine in the center of the place to be disinfected, or other locations that are conducive to ozone diffusion, set the disinfection time,
and turn on the power switch. If there are fans and air conditioners working in the sterilized place at the same time, placing the ozone sterilizer near these facilities will be more conducive
to the diffusion of ozone and achieve a better disinfection effect.

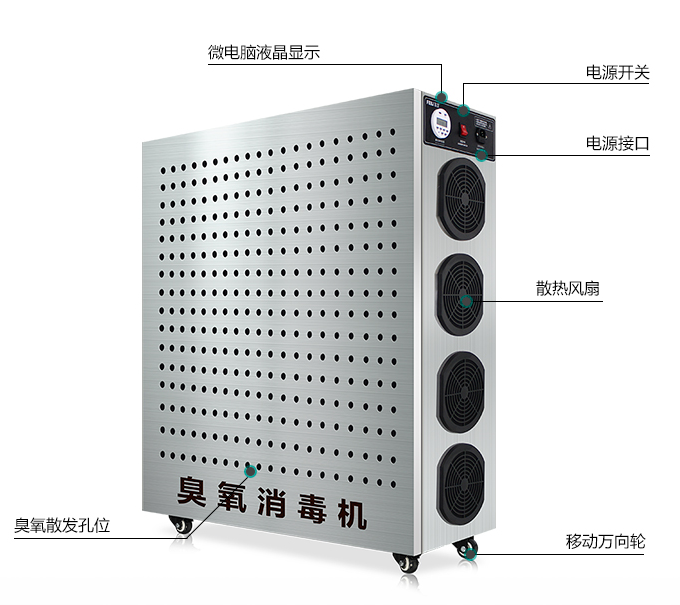

◆ Equipment diagram:
Technical Parameters
|
Model |
Ozone production |
voltage |
power |
Sterilization space |
shell material |
Dimensions (mm) |
|
NB-1 Y40G |
40g |
220V/50Hz |
560W |
1000-2000m3 |
stainless steel |
300*400*1100 |
|
NB-1 Y60G |
60g |
220V/50Hz |
800w |
2000-4000m3 |
stainless steel |
300*400*1100 |
|
NB-2 Y60G |
60g |
220V/50Hz |
800w |
2000-4000m3 |
stainless steel |
750*300*750 |
Features:
1.Mute medical casters are movable and have low mobile noise.
2.Tube-type ozone generator with long life and humidity resistance.
3.High-frequency integrated power supply with stable performance and no high-frequency noise.
4.Microcomputer timing automatic switch unattended
5.Stainless steel casing No harmful gas release, beautiful and durable.
6. Large output, ozone output is suitable for large space, rapid disinfection
